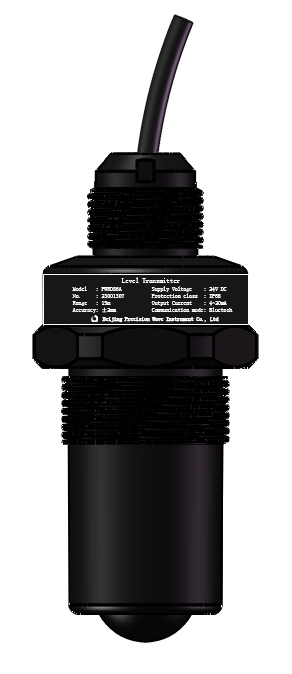

PWRD86A Radar Level Meter
Application: suitable for general working conditions,
such as: liquid level height measurement in the
water industry.
Range: 8m/15m
Accuracy: ±2mm
Process connection: G1?”A
Process temperature: -40~80 °C
Process pressure: -0.1~0.3Mpa
Frequency: 80GHz
Signal output:
4~20mA/24V DC 2-wire system;
4~20mA/24V DC/HART 2-wire system；
RS485/Modbus
Bluetooth function: Yes/no
Explosion proof grade: Exia IIC T6 Ga
Protection rating: IP68
